Certifications Approval and Compliances
CCC
China CCC Power Cords C01
Plug Standard GB 2099.1-1996, GB 1002-1996, 6A 2 pole 2 wires,non-polarized, non-grounding Type A Plug Connector IEC 60320 (320) C-7, C-17, Unterminated. China GB2009 (Chinese 6 A/250 V) and compatible types (Type A), connected with a two-wire ungrounded
- Samples date :1-7days,Free with freight collect
- Delivery date :15-22 days
- MOQ :6ft-3000pcs/4ft-5000pcs
- Packing :Export cartons,pallets,Express box
- Shipping :By Sea,Air,TNT,FedEx
- Payment :Wire Transfer
Inquiry
Message
Product Info
Description产品描述

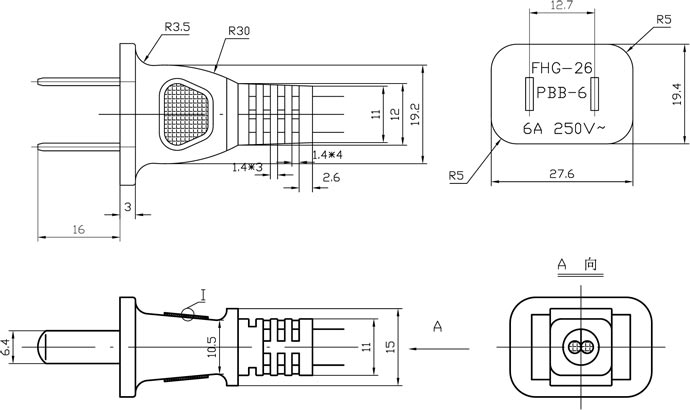

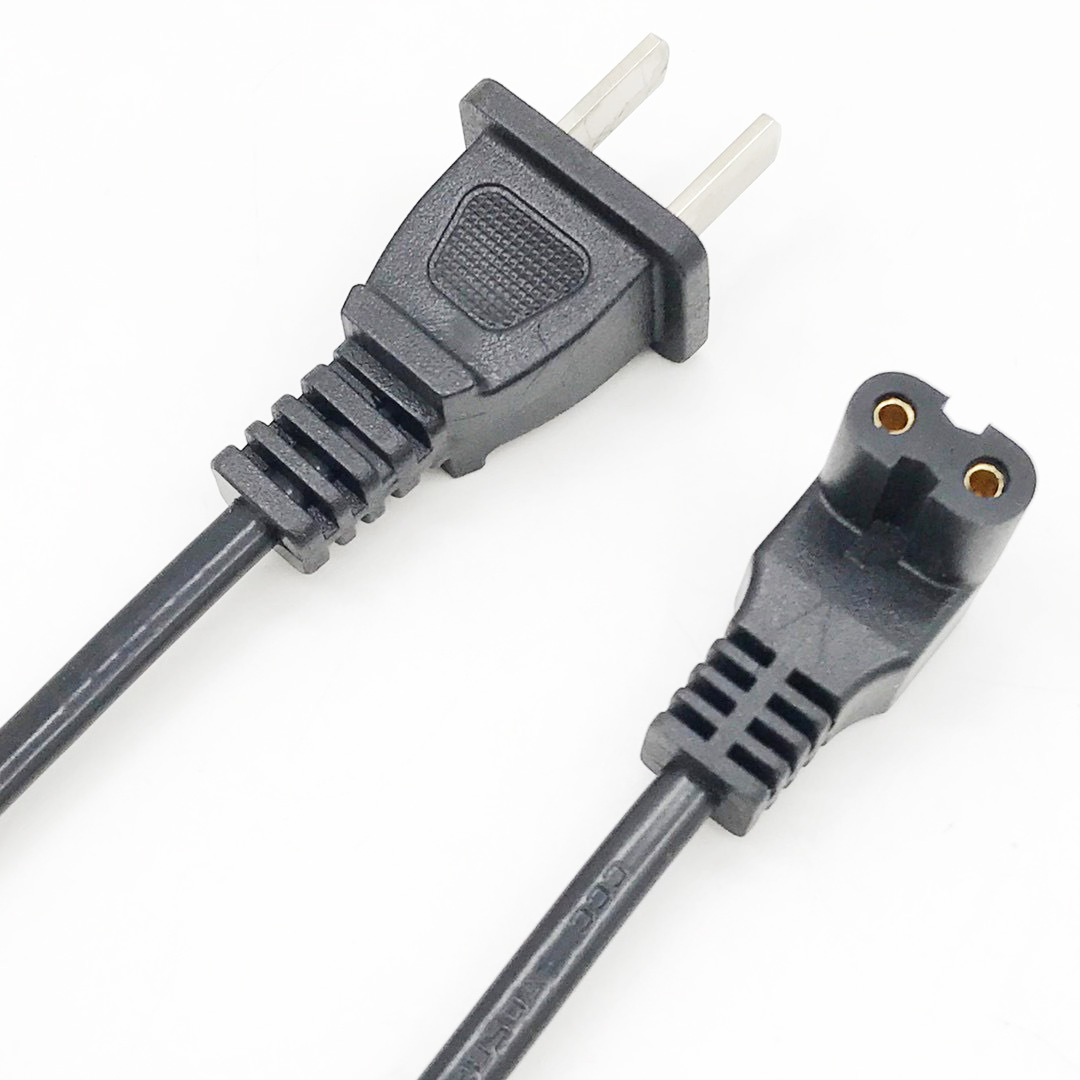

GB 1002 GB2099 2 prong plug power cord with CCC certification Rated up to 6A 250V Built to China 3C standard and designed for China 2 conductor power supply cord applications,GB2099 to C7describe China plug molded with IEC 60320 C7 connector.All of our China CCC AC power cords are fully made with ergonomic design and RoHS / REACH compliant as we are China leading power cable manufacturer.
Features（特点）
The quality is good,Durable,Environmental protecti
Details 产品详情
End and connector(尾部及连接器)
Specifications（规格）
- (Model)型号： C01
- (Voltage)额定电压: 250V
- (Amperage)额定电流: 6A
- (Temperature Rating)温度: 60°C
- (Weight)重量: 20g-50g
- (Color)颜色: User-defined
- (Cable Length)长度: User-defined
Material(材质)
- (Plug Models Desc)模型描述: Type 2P
- (Plug Material)插头材质: Nickel Coated Brass & PBT
- (Cable Conductor Structure)线材导体结构: 2 Poles 2 Wires
- (Cable Insulating Sheath Material)线材绝缘护套材料: PVC, Rubber, Halogen-Free, Textile braid,TPE,Silic
- (Cable Conductor Material)线材导体材质: Oxygen free copper (OFCU)
Quality （质量）
- (Approvals)认证: CCC
- (Standard)标准: GB 1002 GB2099
- (Quality System)质量体系: ISO9001:2008
- (Testing)测试: SGS/TUV
- (Environmental)环保: ROHS,REACH,PAHS
- (Environmental mark)环保标识:
More and more （更多）
- (Patent)专利: NYC
- (Country of Origin)产地: Made in China
Available Cord / Cables Wire Styles
CCC 227 IEC 52(RVV) 2x0.5-0.75
CCC 227 IEC 52(RVV) 3x0.5-0.75
CCC 227 IEC 53(RVV) 2~5x0.75-2.5
Sea and air freight
Free sample(免费样品)
PDF Support(PDF支持)
